Micro Clima
Modular Plant
Growth Chamber

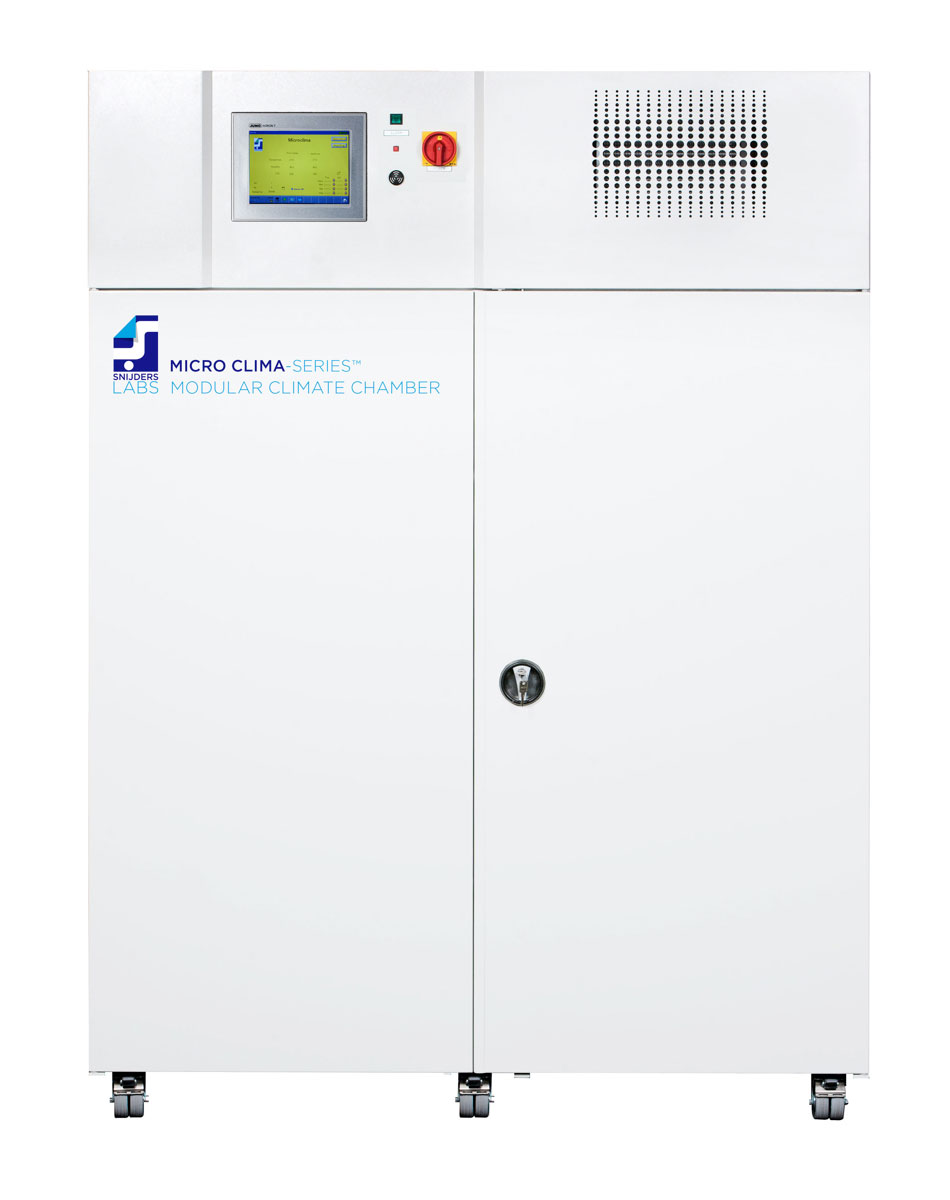

The Micro Clima MD1400 Modular chamber is a versatile chamber and competitively priced.
It utilises the mTronT PLC touchscreen controller which adds to the flexibility and accuracy of control achieved.

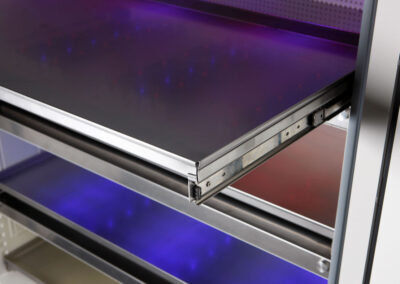

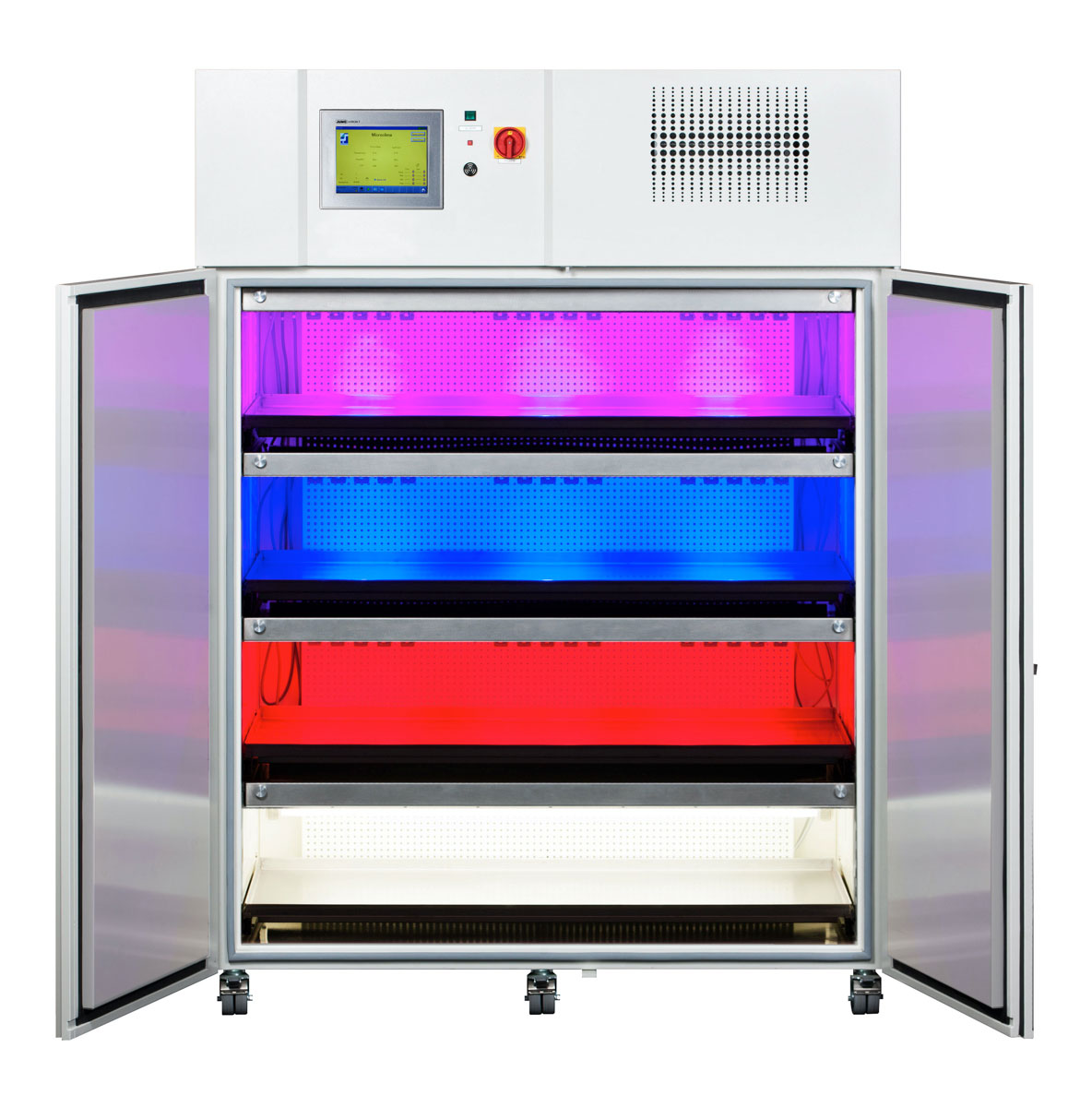

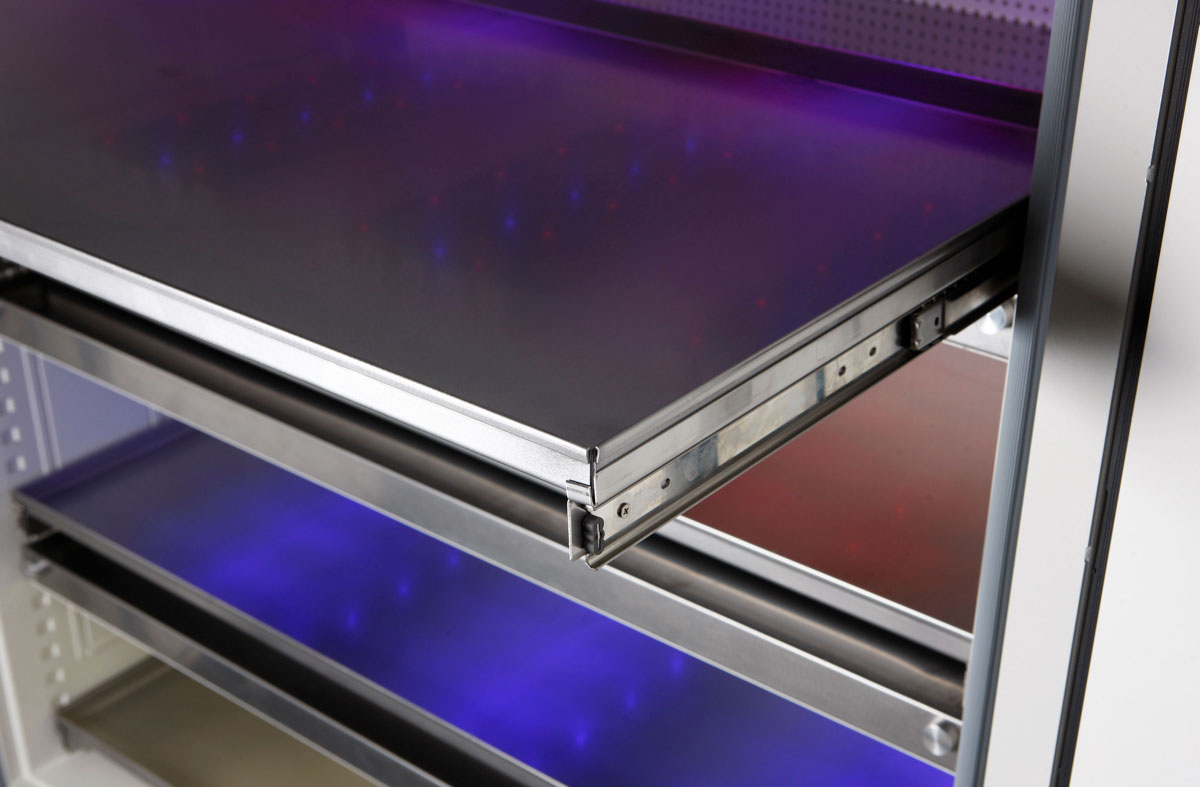

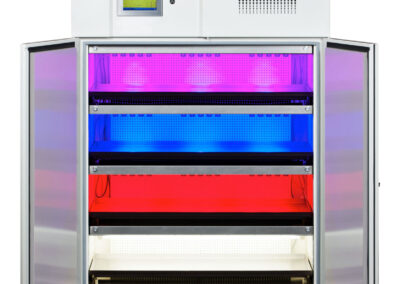

The chamber has a 1, 2, 3, 4, or 5 light shelf options. The light shelves are on quick disconnect cables and can easily be changed out for other lighting options. Each growing shelf can be lit by LEDs (W/B/R/F-R) or Fluorescent lamps or a mix of both. The light mix and intensity depends on user requirements and the performance envelope. The MD1400 is designed to sit on a small footprint within the laboratory space.
General Specifications
- Controls: Touch Screen PLC
- Light Source: LED (w/b/r/f-r), Fluorescent lamps or combination
- Light Intensity: 0 to 1000µmol (dimming option).
- Light Spectrum: All combinations are available
- Temperature Range: lights Off. 4°C to +50°C (performance envelope dependant)
- Temperature Range: lights On 8°C to +50°C
- Temperature Range: Option -10°C to 50°C
- Humidity Range: 40% to 95% Rh
- Humidity Range: Option 15% to 95% Rh
- Standard CO2 Range: Above ambient to 2000, 3000, 5000 or 10000ppm
- Below Ambient CO2: Option down to 100ppm
- Air flow: Option 0 to 0.3m/s
- Variable Speed Control: Optional
- Facility Management Software: Option SVS300
- Energy Usage: 2.2 to 2.6 kW/hr program dependant
- Sustainable: 89% recyclable
